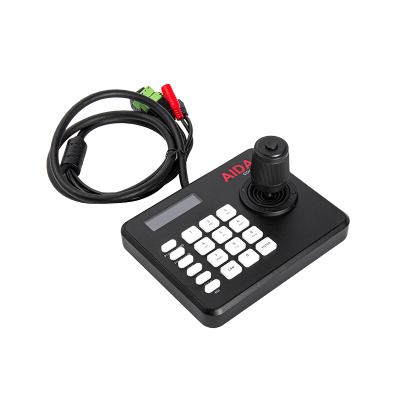

AIDA CCU-MINI Camera Controller

AIDA CCU-MINI — Put essential PTZ operation into a smaller control surface. CCU-MINI provides camera positioning, zoom, focus, and preset recall for supported cameras.

Features

• Compact tactile joystick
• Pan, tilt, zoom, and focus control
• Up to 10 presets per camera
• VISCA over IP or serial connections

Key Specifications

• Camera capacity: Up to 7 compatible cameras
• Control protocols: Serial VISCA · VISCA over IP
• Connections: RS-232 · RS-422 · RJ45
• Power: 12V DC · PoE+ (IEEE 802.3at)

Product Details

CCU-MINI focuses on everyday camera movement and preset operation. Connect through VISCA over IP, RS-232, or RS-422, according to the camera’s supported interface. For an installation that also needs dedicated exposure and white balance controls, compare CCU-IP or RCP-CORE.
